LENKENG LKV383VGA VGA Extender with Audio Over IP CAT6

235 Inc.VAT

  • HDbitT Transport Protocol
  • Extend VGA & Analog Audio
    Over Single CAT5/5e/6 cable
  • Resolutions up to 1920×1080@60Hz
  • Transmit VGA Signal up to 120m

In Stock

Add to Cart
LENKENG-LKV383VGA-VGA-Extender-with-Audio-Over-IP-CAT6
LENKENG LKV383VGA VGA Extender with Audio Over IP CAT6
235 Inc.VAT
SKU: LKV383VGA Category: Tags: , ,

🚚 We deliver all over Cyprus

Guaranteed Safe Checkout

payment-options

LENKENG-LKV383VGA-VGA-Extender-with-Audio-Over-IP-CAT6
LENKENG LKV383VGA VGA Extender with Audio Over IP CAT6
235 Inc.VAT


    I understand that this form collects my name and email so I can be contacted. For more info, check our Privacy Policy


    LENKENG LKV383VGA VGA Extender with Audio Over IP CAT6

    LENKENG LKV383VGA VGA Extender with 3.5mm audio extends VGA signal and analog audio up to 394ft/120m over just one CAT6 cable. It saves cable cost and supports RGBHV signal input.

    1.Point to Point Connection

    LKV383VGA-VGA-Extender-connection2


    2.One-To-Many Connection
    LKV383VGA-VGA-Extender-connection1

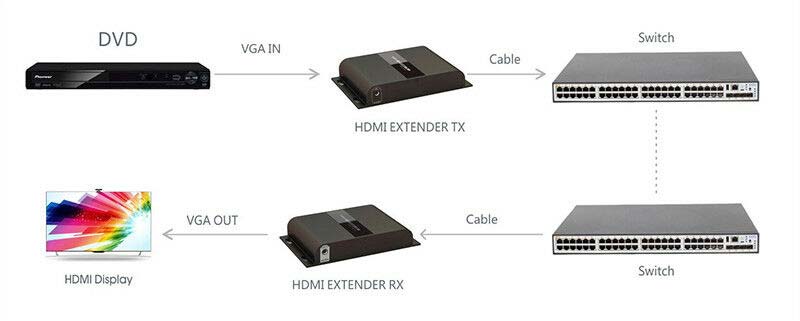

    3.Router Connection

    LKV383VGA-VGA-Extender-connection3

    Features

    -Apply advanced HDbitT transport protocol
    -Extend VGA and analog audio over single CAT5/5e/6 cable
    -Supports resolutions up to 1920×1080@60Hz>
    -Transmit VGA signal up to 394ft/120m
    -Support RGBHV input
    -Support 3.5mm audio jack
    -Cascade connection to split and extend VGA signal unlimitedly
    -High-end aluminum alloy enclosure design


    Items Specification

    VGA signal format: RGBHV

    Transport protocol: HDbitT

    VGA resistance: 75Ω

    Support Resolution:
    1920×1080@60Hz;1680×1050@60Hz;1440×900@60Hz;1360×768@60Hz;1280×1024@60Hz;1280×960@60Hz;1024×768@60Hz;1280×720@60Hz;800×600@60Hz

    Transmit Distance: Transmit 1080P signal over cat6 up to 120 meters, CAT5:80m, CAT5E:100m, CAT6:120m

    It transmits up to 150meters over higher quality level network cable.

    Audio: 3.5mm audio jack

    Working temperature: 0℃~60℃

    Power supply: DC5V/2A *2PCS

    Power consumption: TX<7.5W RX<7W

    Product Dimension: 138x90x23.8mm *2pcs

    Weight: TX:215g RX: 215g

    Color: Black
