LENKENG LKV318PRO 1×8 HDMI Splitter

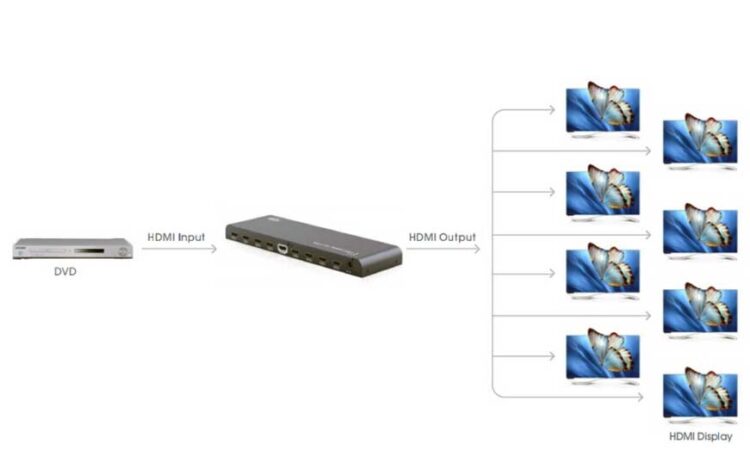

The LENKENG LKV318PRO 1×8 HDMI splitter distributes 1 way HDMI signal from STB, DVD, Blu-ray players or PS3 etc. to 8 ways HDMI signal to connect to projector, DLP, LCD or other HD displays simultaneously.
Applications
The LKV318Pro fully conforms to the latest High Speed HDMI specifications. This HDMI splitter is optimized for distributing HDMI video and embedded multi-channel digital audio to multiple 4Kx2K@30Hz display environments such as residential or digital signage markets and computer lab applications.
FEATURES
- Distribute 1 HDMI source to 8 HDMI displays
- Supports resolution up to ultra HD 4K×2K@30Hz
- Support HDMI 3D
- Plug and play, easy to use
- Good Compatibility
- Metal heat sink design works more stably
- HDMI and HDCP compliant
- Includes 5V DC external power supply
- With a Power switch button for safety use
- Input Ports: 1 x HDMI (Female)
- Output Port: 8 x HDMI (Female)
- Frequency Range: 25MHz~ 340MHz
- Max transmission rate: 10.2Gbps
- Color depth: Supports 12-bit deep Full HD, 3D, 4Kx2K video
- Audio: Support standard audio and DSD（ Direct Stream Digital） and HD(HBR) audio
- HDMI Resolutions:480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/>60Hz,1080i@50/60Hz, 1080p@50/60Hz, 4K×2K@24/25/30/60Hz,3D
- Environment Operating Temperature: 0℃～ 60℃
- Power supply: DC5V/3A
- Power consumption: < 20W
- Dimension: 310mm(L)x112mm(W)x28mm(H)
- Weight: 453g
- Color: Black
